NOZZLES



Williams Fire & Hazard Control has a long history of developing Nozzles that have shaped our industry. From the world's first self-educting nozzles to our most recent centre shot Ranger nozzle, Williams focus is to engineer nozzles that offer the greatest reach, muzzle velocity, and stream efficiency to overcome the odds and protect personnel. When used in conjunction with Thunderstorm/T-Storm foam there is no better nozzle foam combination for extinguishment of flammable or combustible liquids world-wide.



Most products offered by Pearl Fire are available with options and/or may be customized to suit your application. For any particular application there can be a number of possible solutions, before making decisions on what application is best for you we recommend that you talk to one of our specialists to determine the best solution for your situation.



Contact Us for more information about Nozzles



Big-Tee Series

Premium grade industrial master stream nozzle with exclusive “flush” feature.  In flush position, nozzle will purge particulates up to .25” diameter.  Fully adjustable from straight stream to full fog.  Large composite rubber covered brass handles for positive stream control.  All brass construction.  Standard flow rates are 350 and 500 at 100 psi nozzle pressure.



BTM Series

Standard industrial grade master stream nozzle.  Fully adjustable from straight stream to full fog.  Cast brass construction. Standard flow rates of 350, 500, and 700 gpm at 100 psi nozzle pressure.  As an option, nozzle can be factory modified to any flow between 100 to 700 gpm at 100 psi (i.e. any K Factor between 10 and 70).  Abbreviated style cast control handles. Standard jam nut locks foam or water stream at desired pattern.  2.5” NH (F) rigid inlet.



Elkhart Hydro-Chem™ "FLEX" Nozzle

Lightweight design allows for quick deployment using portable monitor or Williams Fire and Hazard Control Daspit™. Suitable for fixed monitor with adjacent dry chemical skid unit such as a Gorilla™ 500 LB PKW Dry-Chemical Vessel. Fully adjustable fog to straight stream pattern. User friendly adjustability with clearly labelled dry chemical and water flow settings.



Foam Wand

The Foam “Wand” is designed to expand and deliver foam into remote/hazardous areas where either logistics or safety considerations dictate that the foam nozzle be “unattended.”  The “wand” delivers high quality foam onto hard-to-access flammable liquid fires.  Flow rate is 95 gpm @ 100 psi (K=9.5).  Works in conjunction with a standard 95 gpm inline eductor or other foam proportioning system.  Nominal foam expansion is 4:1.  Assembly includes 1.5” NH (F) brass swivel foam solution inlet; carbon steel distribution piping; foam nozzle; detachable horizontal “stand-off”, canvas carrying case.



Hydro-Air Foam Monitor Nozzle

 Exclusive super-compact, air aspirating foam nozzle with adjustable stream from full fog to straight stream!  Has the appearance of a standard fog/straight stream monitor nozzle, yet the “Hydro-Air” venturi provides foam expansion ratios of up to 6:1 by actually inducting air into the centre of the master stream.  Medium Body Nozzles are available in lightweight anodized aluminium.  Standard flow rates from 350 to 1500 gpm at 100 psi.  As an option, nozzles can be factory modified to flow from 200 to 1500 gpm at specific inlet pressures.



Hydro-Chem Handgun - Variable Flow

Dual-agent pistol grip handline nozzle incorporates a foam solution or water application with simultaneous Hydro-Chem™ Technology which projects dry chemical through the centre of the foam/water stream to achieve ranges not possible with conventional equipment. Used in conjunction with a separate foam proportioning system.

The foam/water stream is adjustable from full fog to straight stream. Collar mounted ring adjustment allows quick selection of 60, 95 or 125 gpm flow rates — also features a flush setting. The nozzle features separate flow valves for water/foam and dry chemical operations. Constructed of hard anodized aluminium alloy. Total nozzle weight 7 lbs.



Hydro-Foam Medium Body HF Series Nozzle

 Patented water powered nozzle system that proportions and delivers either water or foam to the hazard area.  Fully adjustable from straight stream to full fog with flows of 350 or 500 gpm.  Brass construction with stainless steel trim.  Nozzle comes complete with 1” X 8 ft. flexible pick-up hose. Optional 1% or 3% selector provides dual proportioning capability. Foam concentrate is proportioned directly from an atmospheric source.



LW Series Small Body Hydro-Foam Nozzle

Patented water powered nozzle system that proportions and delivers either water or foam to the hazard area.  Fully adjustable from straight stream to full fog with flows of 150 or 225 gpm.  Brass construction with stainless steel trim.  Foam is proportioned directly from an atmospheric source at 1%, 3% or 6%



LWNS 350, 500, 750 Medium Body Hydro-Foam Nozzles

Patented water powered nozzle system that proportions and delivers either water or foam to the hazard area.  Fully adjustable from straight stream to full fog.  Brass construction with stainless steel trim.  Flows 350, 500 or 750 gpm @100 psi, with 1% or 3% (6% @ 350 and 500 gpm) proportioning. An optional 1% / 3% (3% / 6% @ 350 and 500 gpm) selector valve provides dual proportioning.  Foam concentrate is proportioned directly from an atmospheric storage tank or from a remote foam concentrate supply in conjunction with a matched Jet Ratio Controller at 1% or 3% only.  Nozzle is supplied with 1.5” X 8 ft. flexible pick-up hose.



Medium Body HF Series

Patented water powered nozzle system that proportions and delivers either water or foam to the hazard area.  Fully adjustable from straight stream to full fog with flows of 350 or 500 gpm.  Brass construction with stainless steel trim.  Nozzle comes complete with 1” X 8 ft. flexible pick-up hose. Optional 1% or 3% selector provides dual proportioning capability. Foam concentrate is proportioned directly from an atmospheric source.



The Williams Ranger Nozzle Series



RANGER "Select" Automatic - Constant Metering

Introducing the most advanced foam firefighting nozzle ever made!  The Hydro-Foam™ Ranger™ “Select” Nozzle combines the effective range of an automatic nozzle, while incorporating the exclusive combination of self educting/selectable “constant metering” foam proportioning.  It is capable of accurate foam proportioning (Selectable 1% or 3%) over a broad range of flows (250 - 2000 gpm), while maintaining automatic control of tip pressure (100 psi +/- 10%) over the entire flow range.  This constant nozzle pressure capability maximizes the effective discharge reach for any given flow.  The discharge pattern is adjustable from full fog to straight stream.  Constructed of anodized aluminium with “wrap around” control handle and protective rubber bumper. Water inlet is available in nickel plated brass as an option. Manually operated nozzle is available with automatic controls: 12v; 24v; or hydraulic.



Ranger 2.0 "Centre Shot" Nozzle

The latest addition to building distance and safety into the Williams line of nozzles is the Ranger 2.0 Center Shot™. This nozzle is a modified Ranger 2.0 Automatic - Master Stream nozzle with newly developed internal structure that has acquired a substantial increase in range.

This nozzle’s uniquely-designed internal stream straighteners assure maximum effective reach.  The
Ranger 2.0 Centre Shot™ nozzle has two interchangeable tips to achieve the maximum range possible with the Centre Shot design.  The nozzle pattern is adjustable from full fog to straight stream with flush capabilities. The fog capability with simultaneous centre shot and variable flow rates protects the internal stream and/or provides personnel protection to the operator (firefighter).



The Ranger 2.0 Centre Shot Nozzle provides extended range over the Ranger 2.0 Master Stream Nozzle while delivering simultaneous fog capability.   Constructed of anodized aluminium with exclusive “wrap-around” control handle and protective bumper, this manually operated nozzle is also available with remote controls: 12v; 24v; or hydraulic. The Ranger 2.0 Centre Shot™ flows up to 2,000 GPM with flush capability.  Two interchangeable tips are rated at 500 GPM and 1000 GPM, allowing 500 GPM for fog applications



Ranger 3™ Nozzle

The “Ranger 3™ Nozzle”, featuring “Smart Nozzle” Technology, was designed for today’s Municipal and Industrial Fire Fighters with optimum performance and protection all in one.  Hazards involving flammable liquids in storage and liquids under pressure have met their match with the New Millennium Delivery Systems from Williams Fire & Hazard Control, Inc®.



The “Ranger 3™ Nozzle” is capable of not only self-educting foam concentrate, but can do so while maintaining a nearly constant pressure (+/- 10%) and a constant foam percentage (1% or 3% selectable) regardless of the flow rate. Discharge flow rates from 1000-3000 USGPM (3800-11356 LPM) can be water only, Hydro-Foam™ (using jet pumps or automatic constant/selectable metering) or Hydro-Chem™ for extinguishing liquids and gases under pressure.



The Ranger 3™ “Hybrid” nozzle has the unique capability to perform as an automatic pressure or fixed gallonage nozzle. During automatic operation the nozzle will respond to varying flows to maintain a nearly constant tip pressure, thus maximizing effective range for a given discharge flow. Once the nozzle reaches the fixed gallonage set point (1000-3000 GPM), it performs as a conventional fixed gal­lonage nozzle. This is desirable for foam proportioning operations on storage tank fires or other hazards requiring specific application rates.



The Ranger 3™ nozzle is also capable of Hydro-Foam™ proportioning at rates up to 3000 GPM @ 3% (Ranger 3™ PLUS available up to 4000 GPM at 1% only). It can automatically maintain a nearly constant foam percentage (1% or 3%) throughout the entire flow range while self-educting. It can optionally be configured to pro­portion foam from remote locations using jet pump technology (thus forfeiting the constant/selectable metering feature). The exten­sive “Ranger 3™ Nozzle” options list also allows this nozzle to be Hydro-Chem™ capable with “PKW™” flow rates from 25 lbs/s to 50 lbs/s (Note that this option will replace the self-educting feature and will require jet pumps to maintain foam proportioning functionality). Pattern control from straight stream to full fog is accomplished via a full wrap-around handle attached to the outer sleeve.



Ranger Automatic - Master Stream

The Ranger™ Automatic Master Stream Nozzle is made for use on monitors, ladder pipes, deluge guns and aerial platforms.  This nozzle’s uniquely-designed constant-pressure feature assures maximum effective reach for either water or foam/water solution.  The tip pressure is automatically controlled to maintain a constant pressure (100 psi +/- 10%) over the nozzle flow range, which is from 250 gpm to 1,500 gpm.   (Other maximum flow stops available). The nozzle pattern is adjustable from full fog to straight stream.  Constructed of anodized aluminium with exclusive “wrap-around” control handle and protective bumper. Water/foam solution inlet is available in nickel plated brass as an option. Nozzle is used in conjunction with an independent foam proportioning system when applicable. Manually operated nozzle is also available with automatic controls: 12v; 24v; or hydraulic.





Ranger Automatic Hydro-Chem Nozzle

The Hydro-Chem™ Ranger™ Nozzle combines the effective range of an automatic nozzle, while incorporating the dry chemical/foam solution delivery capabilities of Hydro-Chem™ Technology.  Designed to extinguish three dimensional and oxygenated fuel fires. This unique nozzle projects dry chemical (@ 20 lbs./sec.) through the centre of the foam/water stream, resulting in an effective range not possible with conventional dry chemical equipment. The constant pressure feature assures maximum effective reach of the foam/water solution.  The tip pressure is automatically controlled to maintain a constant pressure (100 psi +/- 10%) over the nozzle flow range, which is from 250 gpm to 1,500 gpm.  The discharge pattern is adjustable from full fog to straight stream.  Constructed of anodized aluminium, with “wrap-around” control handle and protective rubber bumper. Foam solution/water inlet is available in nickel plated brass as an option. Nozzle is used in conjunction with an independent foam proportioning and dry chemical delivery system.

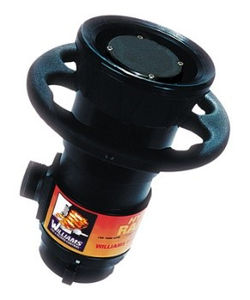

Ranger Constant Flow 750, 1000, 1250, 1500 GPM

Water powered nozzle system that proportions and delivers either water or foam to the hazard area.  Fully adjustable from straight stream to full fog. Constructed of hard anodized aluminium alloy with stainless steel trim. Water inlet is available in nickel plated brass as an option. Nozzle is supplied with flexible 8 ft. pick-up hose with 1.5” rigid pvc drum “stinger”. Built in select feature provides proportioning at either 1% or 3%. Fixed foam proportioning may be proportioned directly from atmospheric source. Manually operated nozzle is also available with automatic controls: 12v; 24v; or hydraulic. Optional “Jet Pump” is available for remote proportioning.



SCOUT 350, 500, 750 GPM

Our NEW SCOUT nozzle is constructed using a NEW GENERATION of lightweight, non-corrosive composite material, anodized aluminium, and stainless steel. The result is an extremely durable nozzle designed and tested specifically for the harsh operational environments and climates found in industry around the world. The composite material has undergone extensive testing including accelerated aging tests followed by extensive dimensional analysis of the constituent parts.

The SCOUT is the latest in a series of innovative lightweight Hydro-Foam™, self-contained foam systems as defined by the current edition of NFPA standard 1901, Foam Proportioning Systems.
Features and benefits:



  • Self-educts foam concentrate directly from an atmospheric source.

  • Selectable gallonage with matched foam proportioning of 1% and 3% at 350, 500, or 750 gpm at 100 psi operating pressure.

  • Simply disconnect foam concentrate supply for a water only “Master Stream” device

  • Flush setting as recommended per NFPA 1964.

  • Change flow rate, proportion rate, or flush without the need to shut down.

  • Positive lock feature for rate selection!

  • Self-contained internal stream straightener to maximize range!

  • Adjustable pattern control for full fog to straight stream.

  • Complete unit weighs only 6 lbs!

  • Includes 1” x 8’ vacuum rated clear concentrate pickup hose included.

  • 1.00” MNPT foam inlet port.

  • 2.50” FNST Swivel inlet connection.



Viper Select Hydrojet Handline Series

Superior quality fire fighting handline nozzles.  Created from performance data gained through extensive research, as well as from actual field exposure on a multitude of large “fires in anger.”

Features and benefits:



  • Multiple Gallonage/Constant Flow design

  • Compact and Lightweight Design in Extruded “E-Lite” Alloy

  • Moulded Composite Rubber Pistol Grip for Precise Control

  • Durable Construction Provides Superior Impact Resistance

  • Constant Flow feature Allows for use with Matched Foam Eductor

  • Factory Installed spinning teeth for Maximum Stream Break-up

  • Combination Full Fog to Straight Stream

  • Independent Pattern Selection with Indication

  • Heavy Duty Rubber Bumper

  • Fully Machined Waterway for Flow Efficiency

  • Excellent for use with ThunderStorm® ATC Foam Concentrates

  • Horseshoe Shutoff Provides Positive Flow Control

  • Change Flow without Changing Pattern

  • Full Flush Feature





WBB Big Boy Hi-Volume Monitor Nozzle

High-volume, industrial-grade, master stream nozzle.  Fully adjustable from straight stream to full fog.  Cast brass construction.  Standard flow rates of 750,  and 1000 gpm at 100 psi.  Abbreviated style cast control handles.  Standard jam nut locks foam or water stream at desired pattern.  Available with either 2.5” or 3.5” NH (F) inlet.



For a full range of Pearl Fire's Nozzles click on the attachment below.
